Architecture Overview

Explore LangDB’s dedicated tenant architecture with secure metadata storage, real-time observability, cost management, and scalable MCP execution.

NextEnterprise Licensing Options

Last updated 14 hours ago

Was this helpful?

This page describes the core architecture of the LangDB AI Gateway, a unified platform for interfacing with a wide variety of Large Language Models (LLMs) and building agentic applications with enterprise-grade observability, cost control, and scalability, MCP features and more.

Core Components

Component
Purpose / Description
Enterprise Features / Notes

AI Gateway

Multi-tenancy, advanced cost control, and rate limiting. Contact LangDB for access.

Metadata Store (PostgreSQL)

Stores metadata related to API usage, configurations, and more.

For scalable/multi-tenant deployments, use managed PostgreSQL (e.g., AWS RDS, GCP Cloud SQL).

Cache Store

(Redis)

Implements rolling cost control and rate limiting for API usage.

Enterprise version supports Redis integration for cost control and rate limiting.

Observability & Analytics Store (ClickHouse)

Provides observability by storing and analyzing traces/logs. Supports OpenTelemetry.

For large-scale deployments, use ClickHouse Cloud. Traces stored in langdb.traces table.

Note:

  • Metadata Store: Powered by PostgreSQL (consider AWS RDS, GCP Cloud SQL for enterprise)

  • Cache Store: Powered by Redis (enterprise only)

  • Observability & Analytics Store: Powered by ClickHouse (consider ClickHouse Cloud for scale)

Environment Overview

LangDB provisions a dedicated environment for each tenant. This environment is isolated per tenant and is set up in a separate AWS account or GCP project, managed by LangDB. Customers connect securely to their provisioned environment from their own VPCs, ensuring strong network isolation and security.

LangDB itself operates a thin, shared public cloud environment (the "control plane") that is primarily responsible for:

  • Provisioning new tenant environments

  • Managing access control and user/tenant provisioning

  • Handling external federated account connections (e.g., SSO)

  • Hosting the LangDB Dashboard frontend application for configuration, monitoring, and management

All operational workloads, data storage, and LLM/MCP execution occur within the tenant-specific environment. The shared LangDB cloud is not involved in data processing or LLM execution, but only in provisioning, access management, and dashboard hosting.

Customer Environment

  • Integrates with customer identity providers (Active Directory, SAML, SSO).

  • Users (AI Apps, Agents, Administrators, Developers) interact with LangDB via secure endpoints.

LangDB Dashboard

  • Centralized dashboard for configuration, monitoring, and management.

  • Handles user and tenant provisioning, access control, and external federated account connections.

  • All provisioning and access is centrally managed via LangDB Cloud and Dashboard.

Tenant Environment (Execution Layer)

  • Each tenant (enterprise deployment) is provisioned in a dedicated AWS account or GCP project.

  • Communication between tenant environment and LangDB is secured and managed.

  • Provisioning is automated via Terraform.


Store Descriptions

Metadata Store (PostgreSQL)

Stores all configuration and metadata required for operation, including:

  • Virtual models

  • Virtual MCP servers

  • Projects

  • Guardrails

  • Routers

Redis (Cache Store)

Used for fast, in-memory operations related to:

  • Rate limiting & cost control

  • LLM usage tracking

  • MCP usage tracking

ClickHouse (Analytics & Observability Store)

Stores analytics and observability data:

  • Traces (API calls, LLM invocations, etc.)

  • Metrics (performance, usage, etc.)


User and Tenant Provisioning

  • User and tenant provisioning is centrally controlled via LangDB Cloud and Dashboard.

  • External federated accounts (e.g., enterprise SSO) can be connected to LangDB Cloud for seamless access management.


Data Retention

  • Data retention policies mainly apply to observability data (traces, metrics) stored in ClickHouse.

  • Retention is enforced per subscription tier; traces are automatically cleared after the retention period expires.


MCP Server Deployment

  • MCP servers are deployed in a serverless fashion using AWS Lambda or GCP Cloudrun for scalability and cost efficiency.

Unified interface to 300+ LLMs using the OpenAI API format. Built-in observability and tracing. Free & Open Source version available at .

langdb/ai-gateway

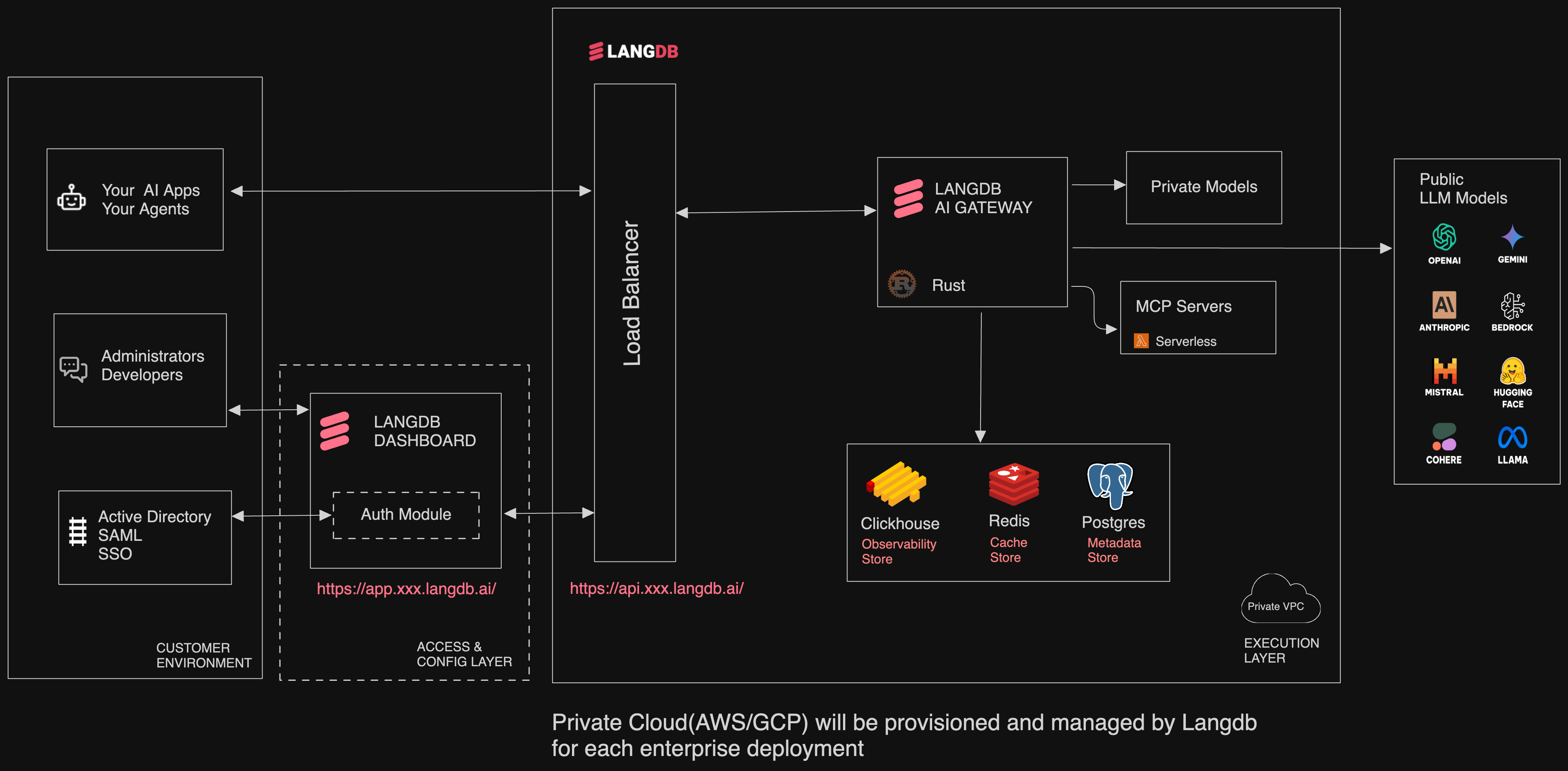

Architectural Overview for LangDB
